UPI Manufacturing produces precision-fabricated HMMWV B-Kit (2541-01-626-4650) components and assemblies designed to provide mission-specific protection for military vehicles and equipment. From individual armor components to complete kits, each part is manufactured, finished, inspected, and prepared for reliable integration in the field.

UPI has fabrication, welding, machining, surface finishing, quality control, assembly, and kitting capabilities under one roof and maintains control throughout the manufacturing process. The result is consistent fit, dependable quality, and HMMWV B-Kits built to meet demanding specifications—so the warfighter has the protection needed when the mission calls for it.

Available at UPI. Contact us for pricing.

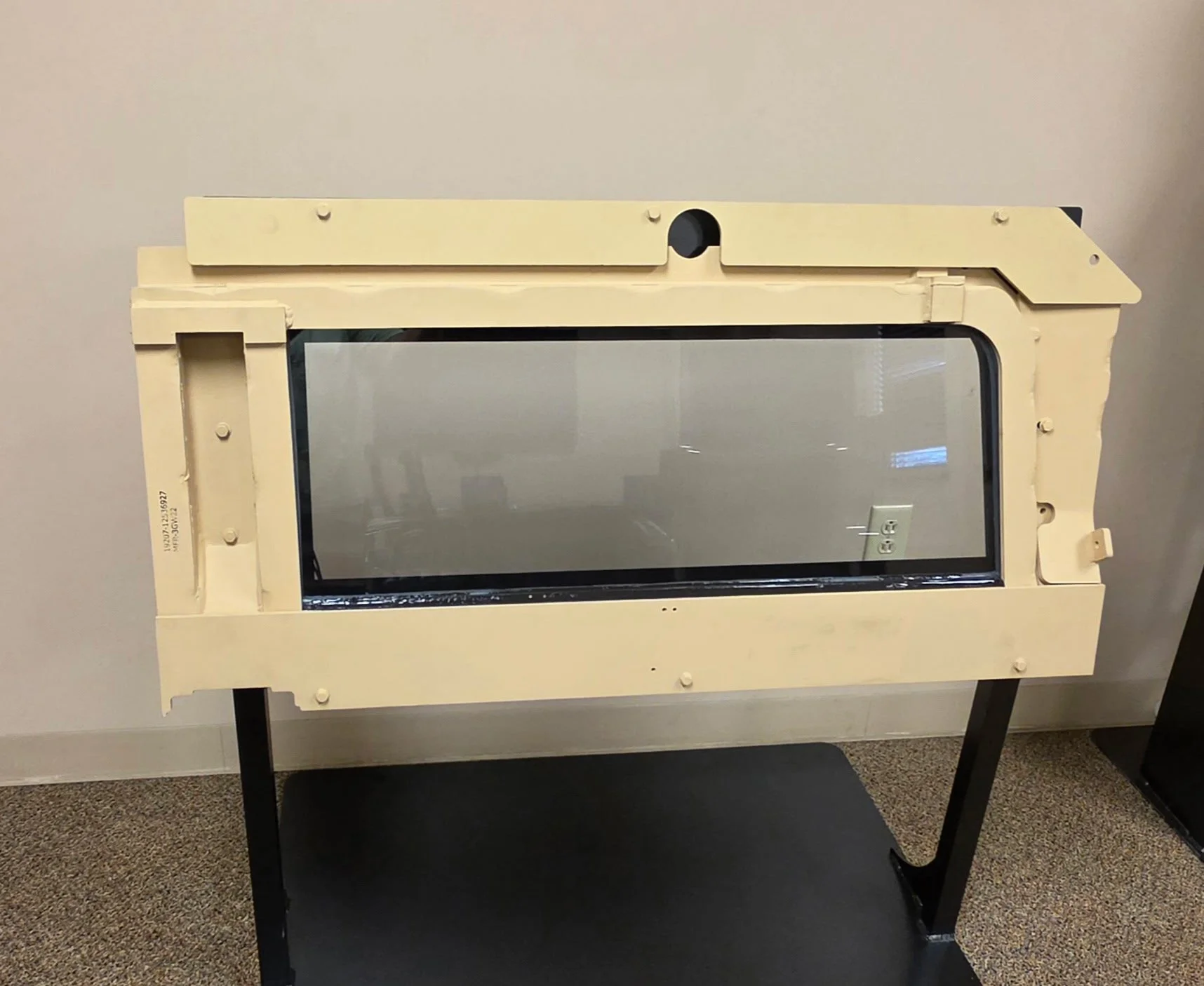

NSN 2541-01-626-4650 - Complete HMMWV B-Kit

Windshield Frame Window, Driver - 12615030-1F

Windshield Frame Window, Co-Driver - 12615030-2F

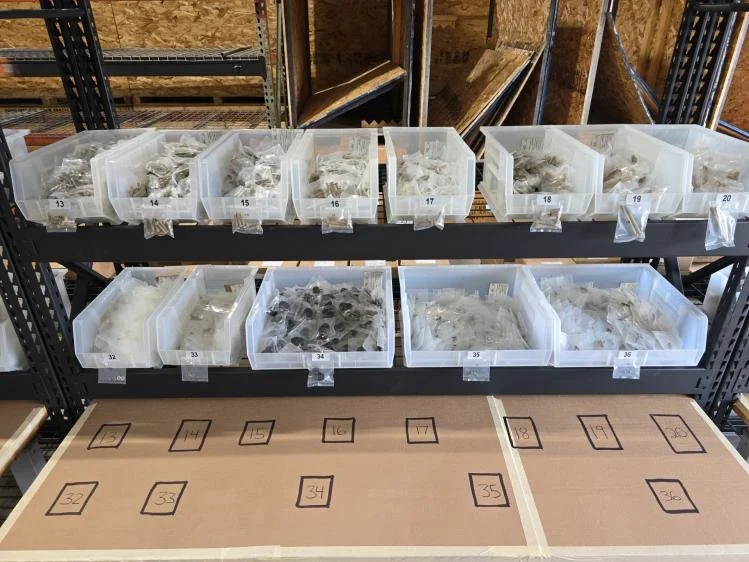

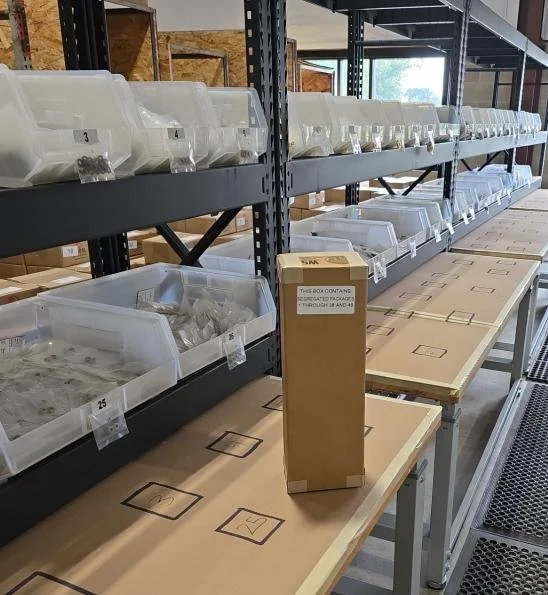

Hardware Kit (with installation instructions) - 57K6235

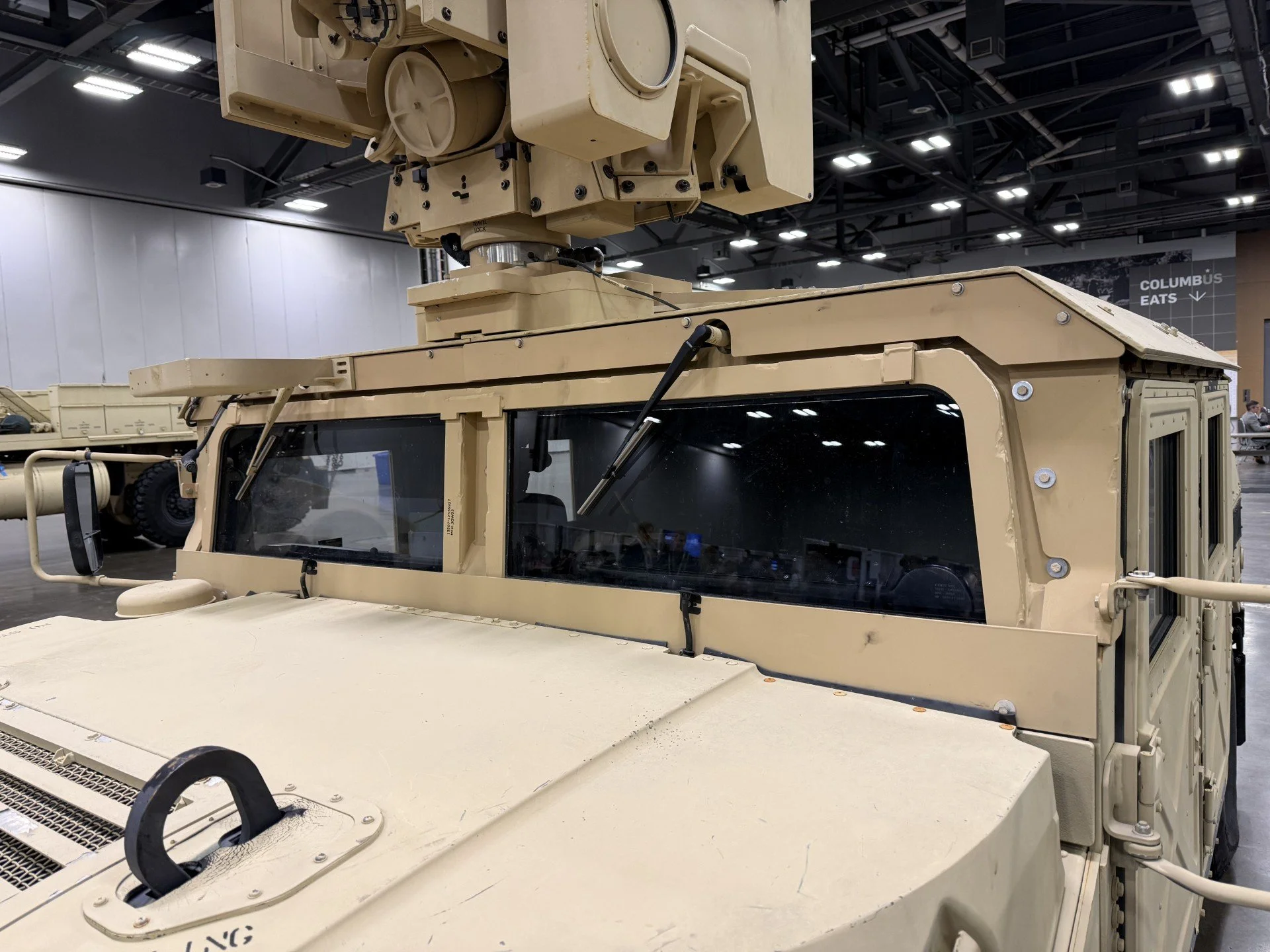

‍Item 1 - 12339505 - NSN 2540-00-248-6626 Wiper Blade Assembly (qty 2)

‍Item 2 - 12387272-44 - Lockwasher (qty 27)

Item 3 - 12387272-45 - Lockwasher (qty 4)

Item 4 - 12387272-46 - Lockwasher (qty 4)

Item 5 - 12387279-7 - Washer (qty 2)

Item 6 - 12387279-10 - Washer (qty 2)

Item 7 - 12387327-3 - Washer (qty 3)

Item 8 - 12387327-16 - Washer (qty 4)

Item 9 - 12387327-19 - Washer (qty 4)

Item 10 - 12387327-20 - Washer (qty 19)

‍Item 11 - 12529045 - Washer (qty 6)

Item 20 - ‍12561435-15 - Screw (qty 8)

Item 21 - 12561435-17 - Screw (qty 12)

Item 22 - 12561435-19 - Screw (qty 5)

Item 23 - 12561435-25 - Screw (qty 4)

Item 24 - 12561435-69 - Screw (qty 3)

Item 25 - 12561435-77 - Screw (qty 6)

Item 26 - 12561435-89 - Screw (qty 2)

Item 27 - 12561435-93 - Screw (qty 2)

Item 28 - 12561435-129 - Screw (qty 3)

Item 29 - 12561435-135 - Screw (qty 1)

Item 30 - 12561435-139 - Screw (qty 3)

‍Item 31 - 12561460-26 - Locknut (qty 5)

Item 32 - 12561460-34 - Locknut (qty 2)

Item 33 - 12561460-42 - Locknut (qty 3)

Item 34 - 12561460-50 - Locknut (qty 1)

Item 35 - 12563731 - Installation Instructions

Item 36 - 13013705 - Nozzle Assembly (qty 2)

Item 37 - 13014026-2 - Washer (qty 7)

Item 38 - 13014027-4 - Washer (qty 3)

Item 39 - 13014028-6 - Washer (qty 2)

Item 40 - 13014031-2 - Washer (qty 2)

Item 41 - 13015296-2 - Lockwasher (qty 4)

Item 42 - MS21333-70 - Clamp (qty 2)

Item 43 - MS35206-245 - Screw (qty 2)

‍Item 44 - MS35206-247 - Screw (qty 2)

Item 45 - 12512221-1 - NSN 2510-01-560-1159 Windshield Assembly, Left (qty 1)

Item 46 - 12512221-2 NSN 2510-01-561-2540 Windshield Assembly, Right (qty 1)

Item 47 - 6040901 - NSN 5340-01-586-0858 Bracket, Mounting, Air Intake (qty 1)

Item 48 - 6042507 - NSN 5340-01-596-4595 Bracket Washer Nozzle (qty 2)

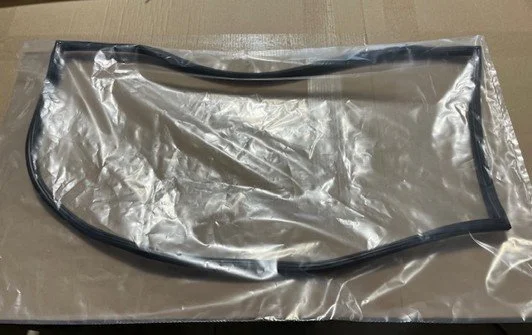

Item 49 - 12338860 - NSN 5330-01-209-5997 Weather Strip, Windshield (qty 2)

‍Item 50 - 12387327-34 - NSN 5310-01-379-9943 Washer (qty 8)

Armor Kit

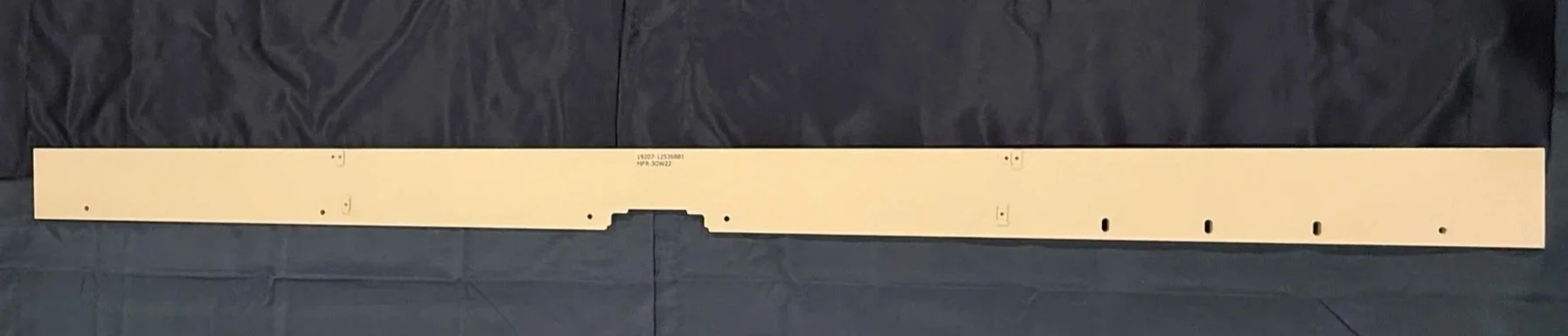

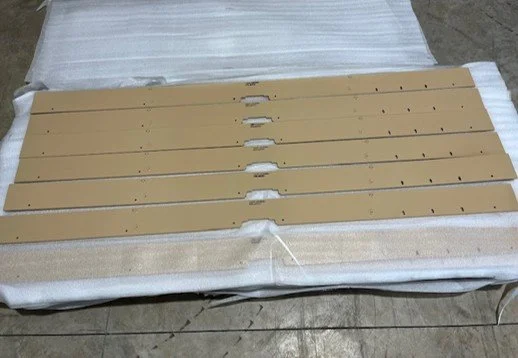

‍Item 12 - 12536881 - NSN 2540-01-538-3499 Armor Assembly, Capping, Lower (qty 1)

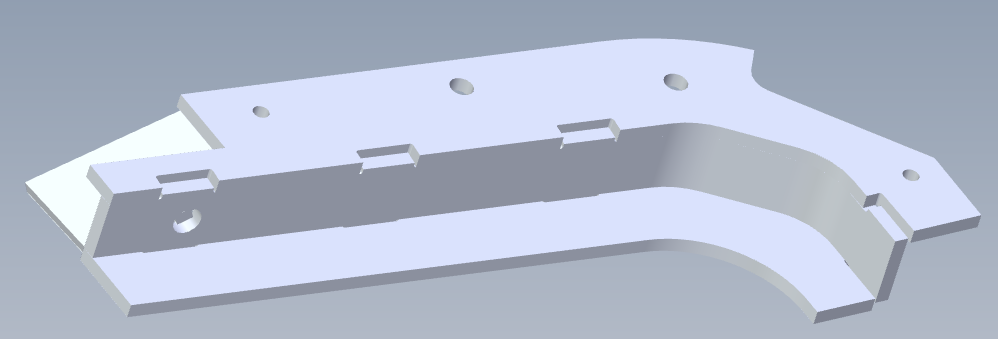

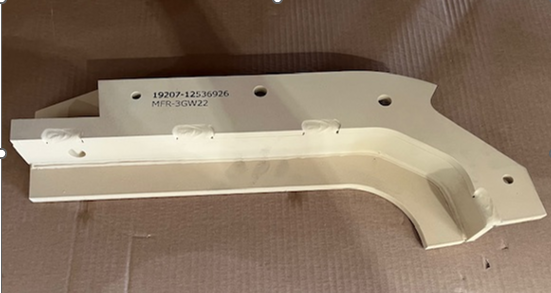

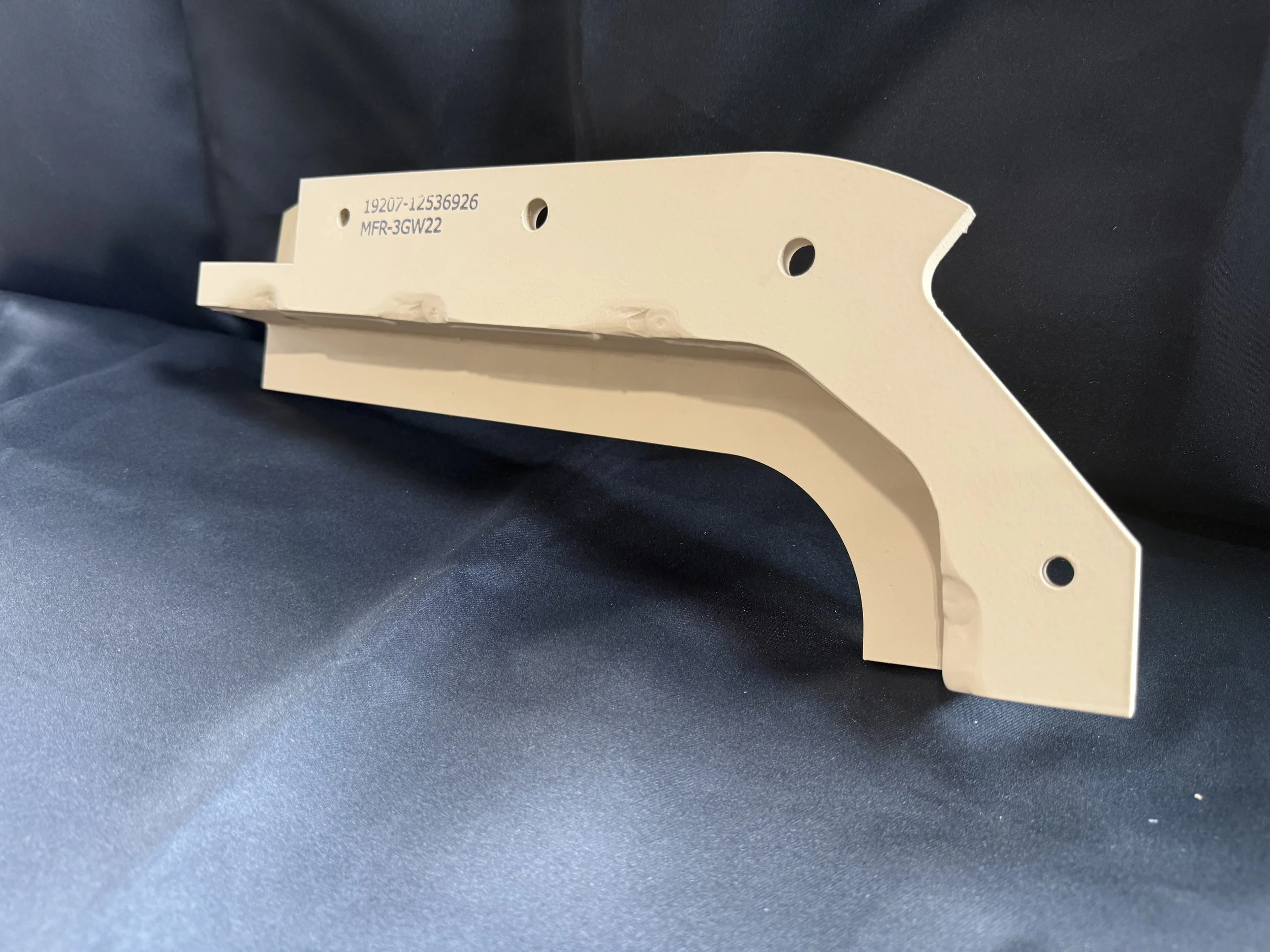

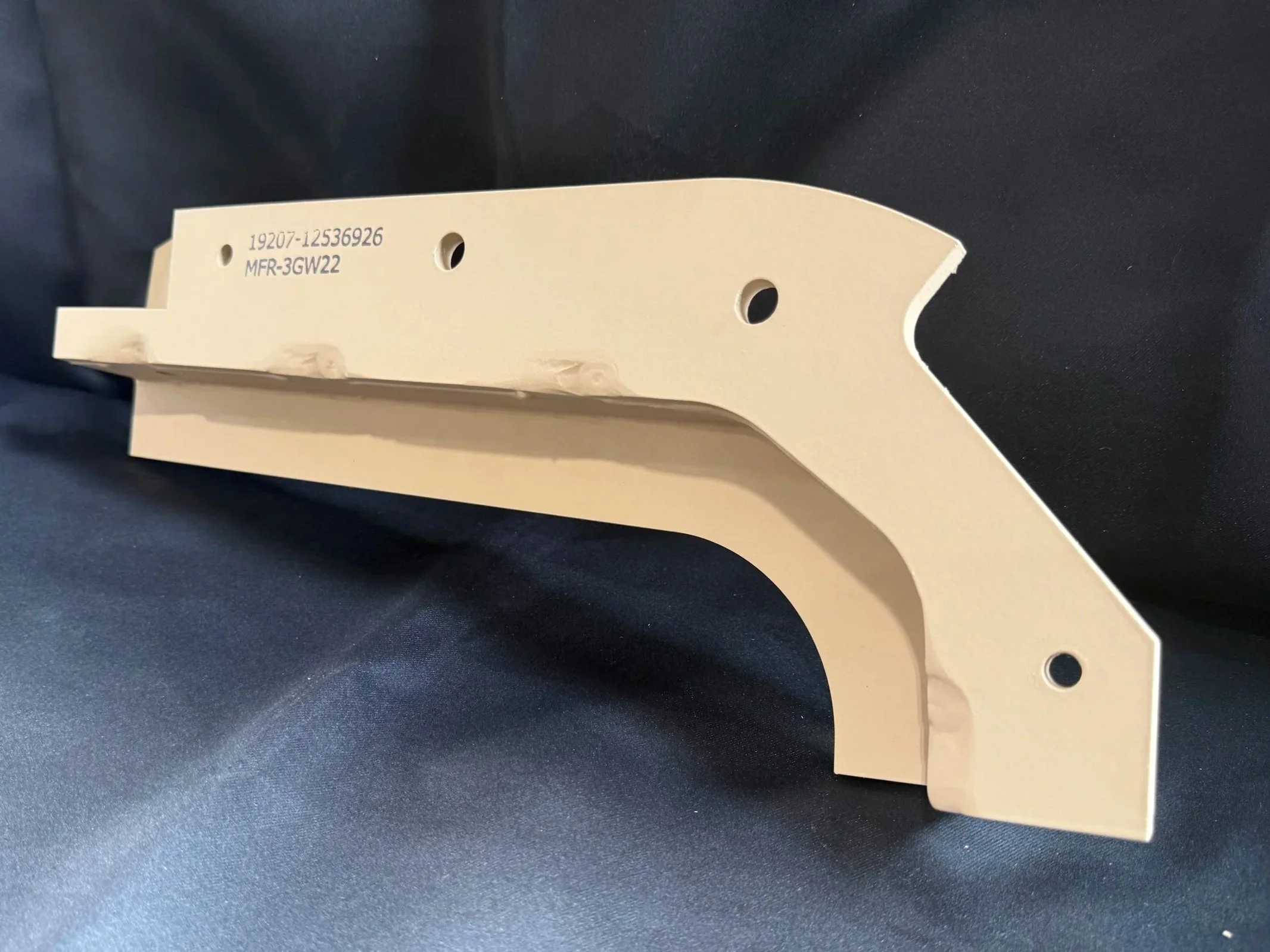

Item 13 - 12536926 - NSN 2540-01-536-4093 Armor Assembly, Capping, Left (qty 1)

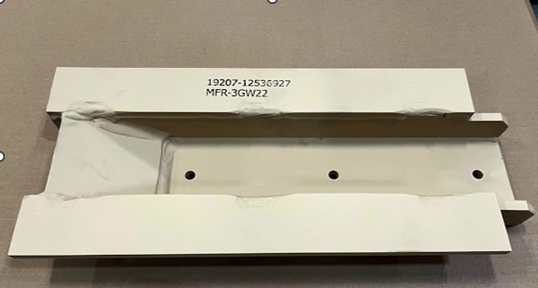

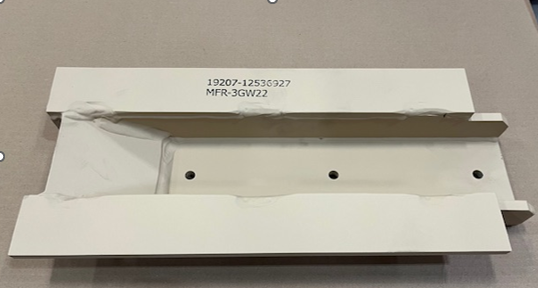

Item 14 - 12536927 - NSN 2540-01-536-5762 Armor Assembly, Capping, Center (qty 1)

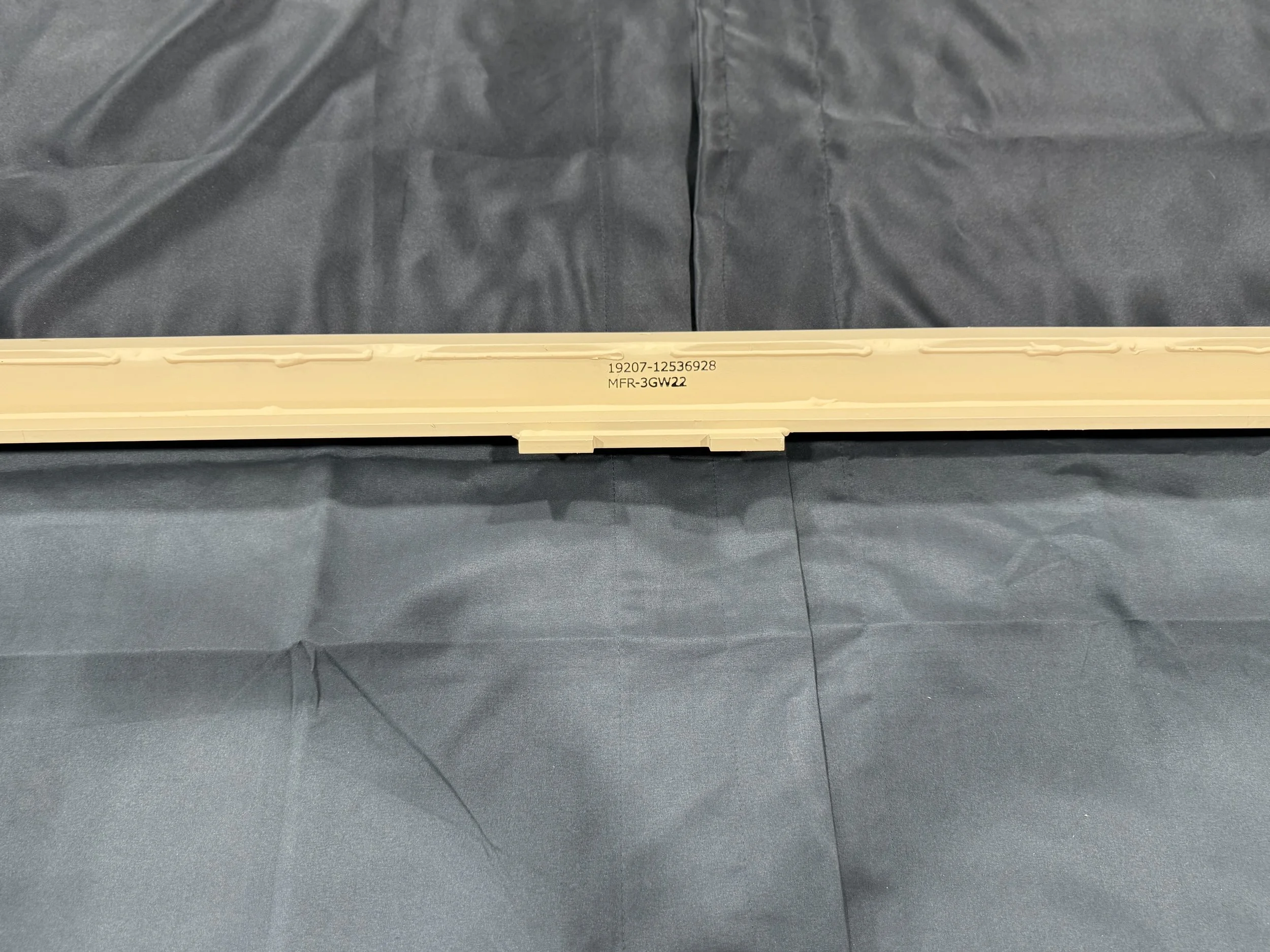

Item 15 - 12536928 - NSN 2510-01-537-1090 Armor Assembly, Capping, Upper (qty 1)

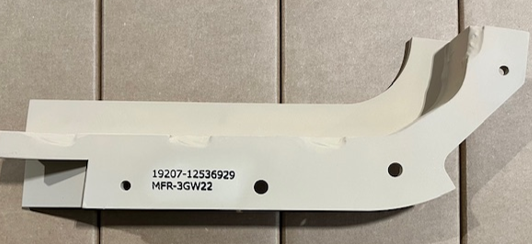

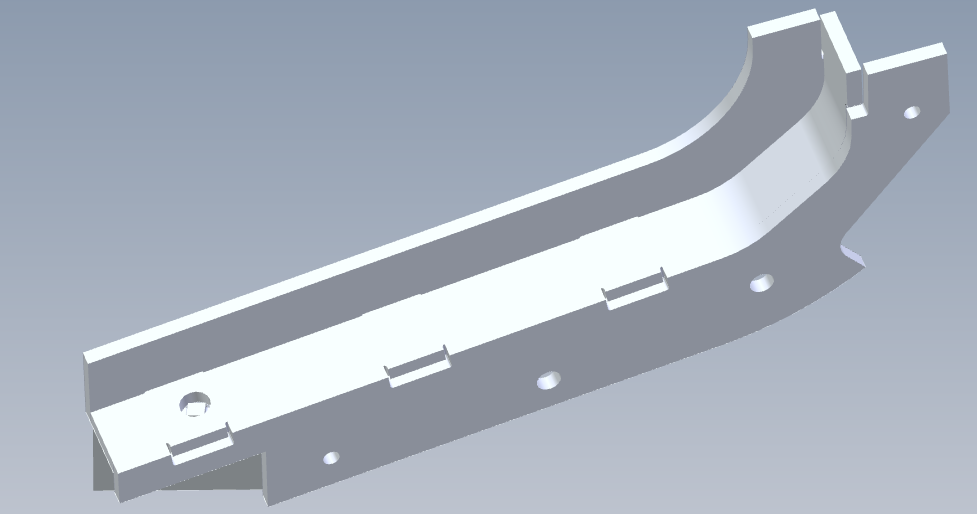

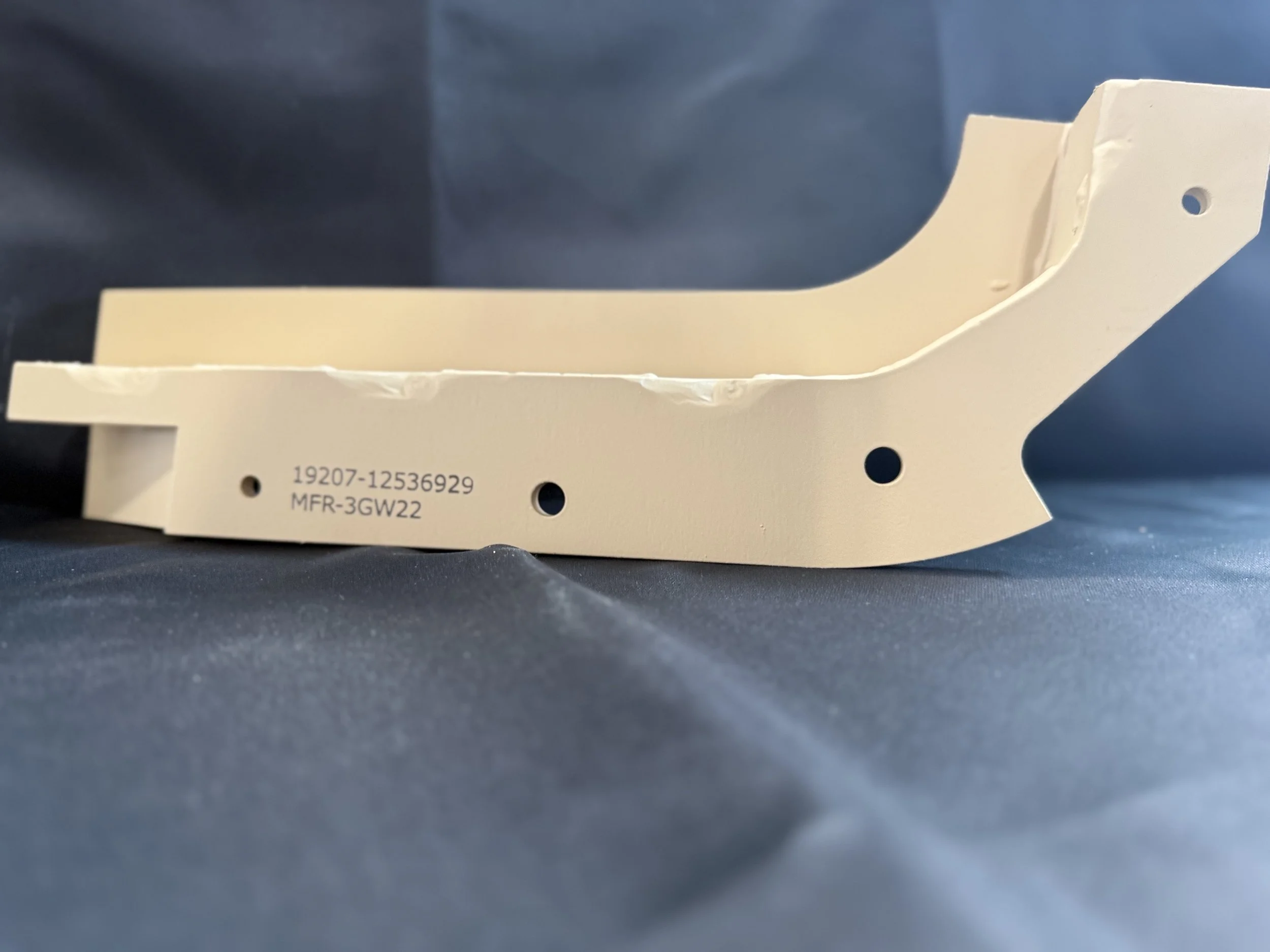

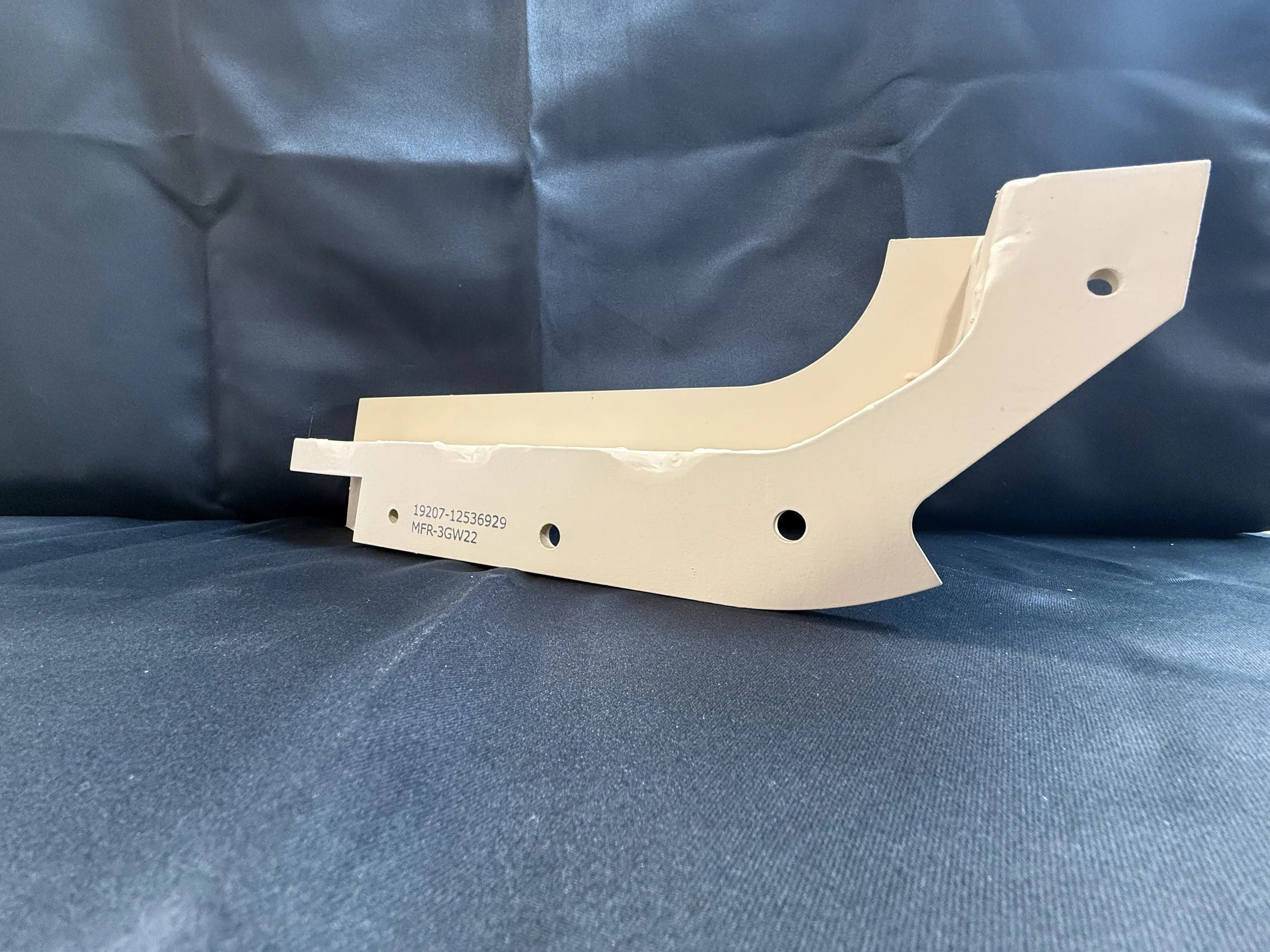

Item 16 - 12536929 - NSN 2540-0-536-5776 Armor Assembly, Capping, Right (qty 1)

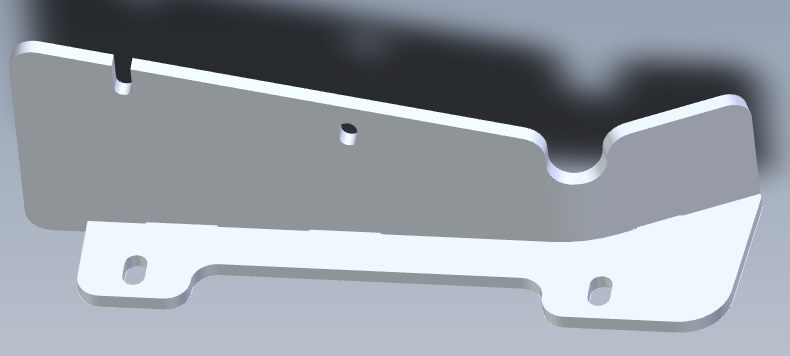

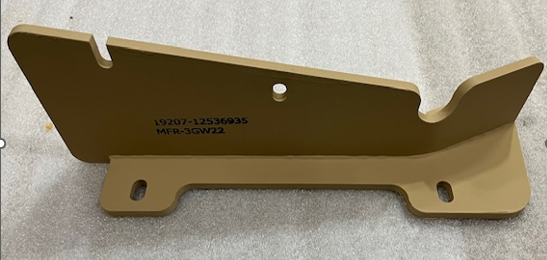

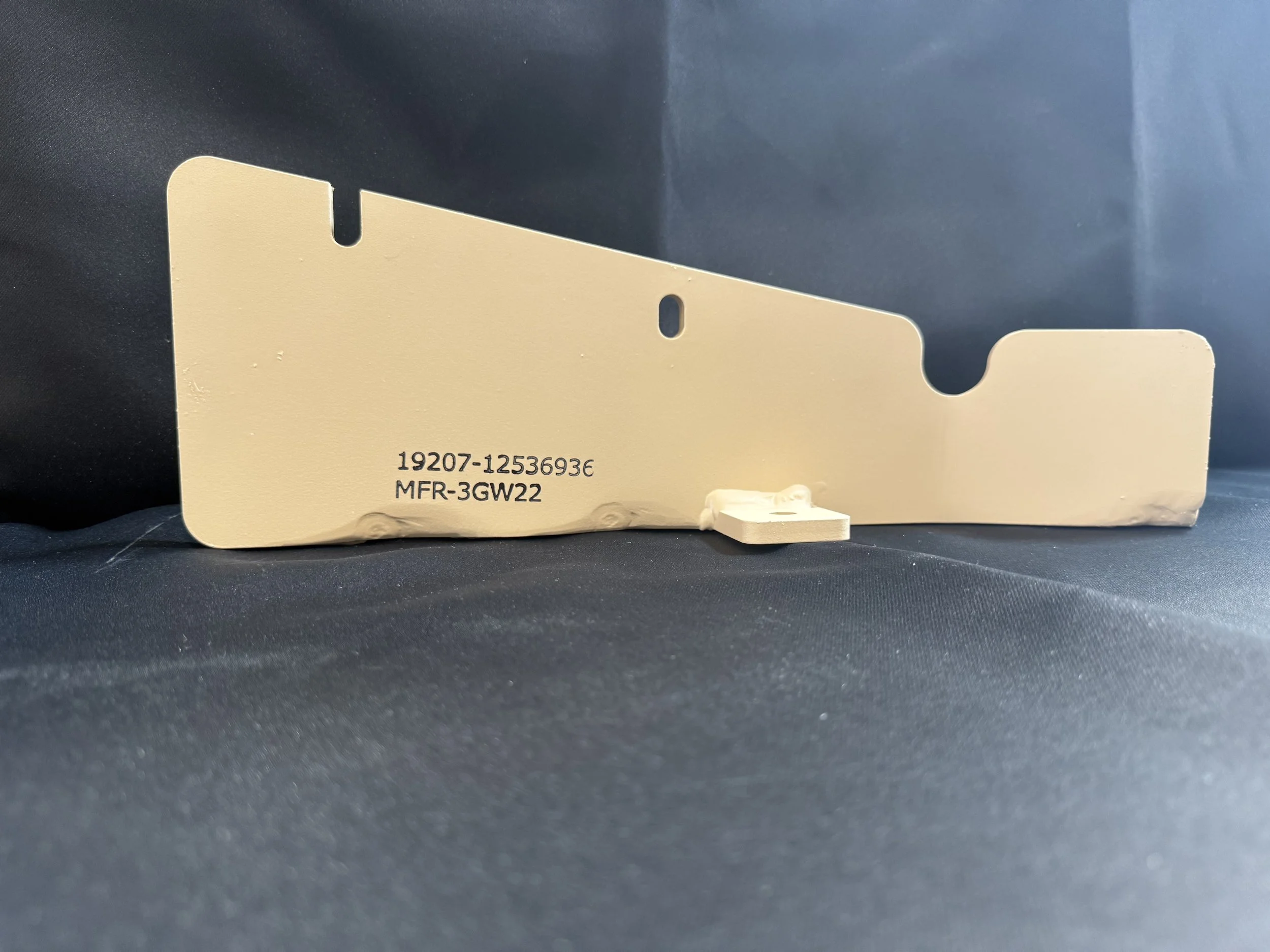

Item 17 - 12536935 - NSN 2540-01-538-3217 Armor, Assembly, A-Pillar Gap, Left (qty 1)

Item 18 - 12536936 - NSN 2540-01-538-3219 Armor Assembly, A-Pillar Gap, Right (qty 1)

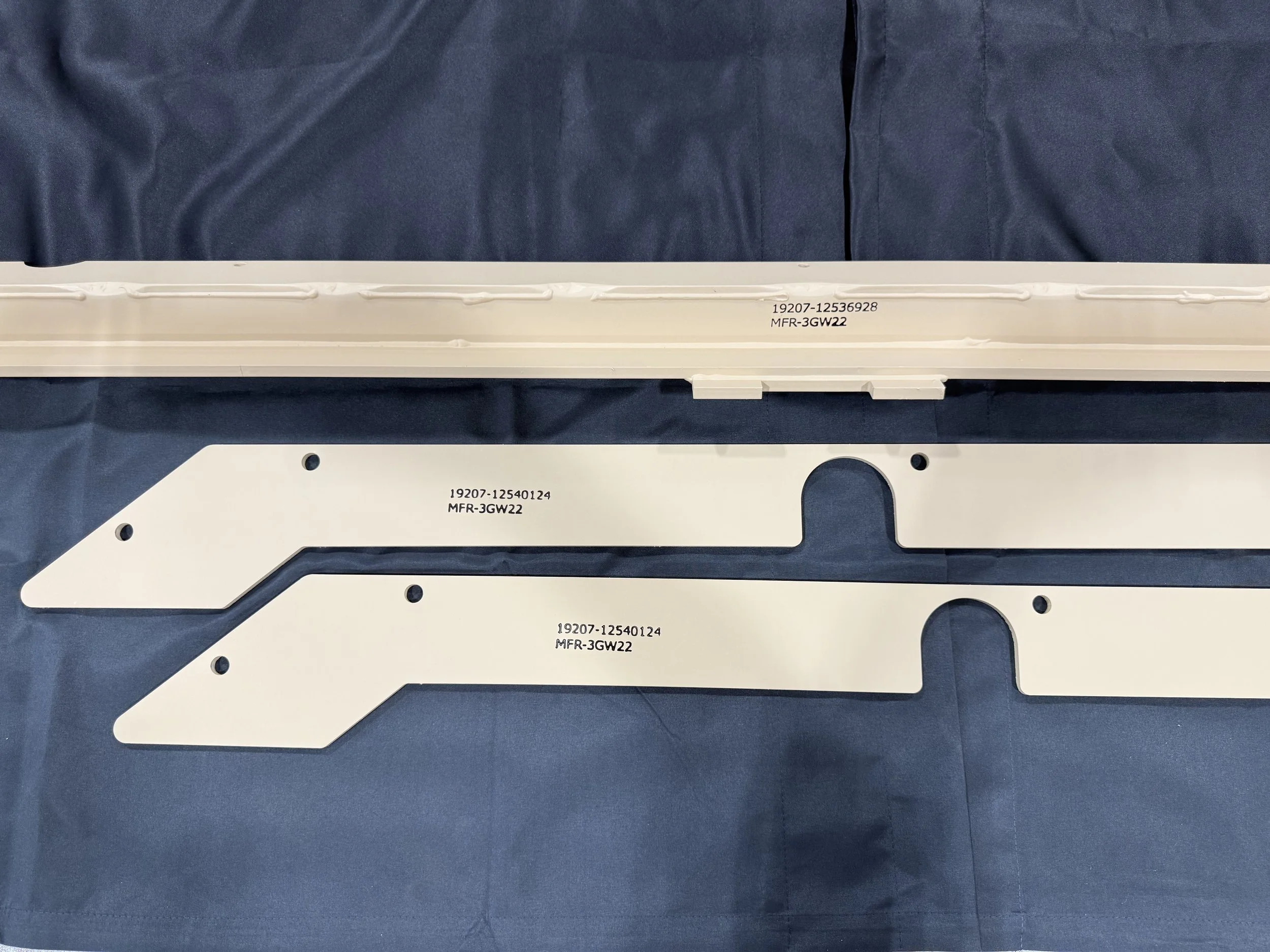

Item 19 - 12540124 - NSN 2510-01-536-3578 Armor Panel, Front (qty 2)

‍
